Caterpillar marine engines
A global propulsion solution
Eneria can propose a complete solution for your projects in numerous marine applications, thanks to is renowned experience and a complete range of Caterpillar marine engines, Caterpillar gensets and onboard auxiliaries.
Eneria proposes a wide range of Caterpillar engines, from 10 kW to 5,700 kW, for all your applications.
Eneria works with several shipyards and is involved from the choice of engine, to the integration, commissioning and maintenance of the engines.
We help various players to choose and develop solutions that are well adapted to their technical requirements.
Scopes of application of marine engines
Caterpillar’s marine engines are used in applications in the following sectors.
Fishing
Fishing is a demanding activity, in which fishermen work under difficult conditions and the engines are put to the test. Eneria can supply an integrated solution, ranging from 10 kW to 5,500 kW, for propulsion or operational purposes, thanks to the Caterpillar marine engines.
Offshore
Offshore support vessels operate in difficult conditions and demand maximum availability, due to the requirements of the sector. Thanks to the robust Caterpillar engines and our maintenance teams, we can supply a complete solution that optimises uptime and makes savings.
Tugs
Eneria can supply the engine you need for your towing operations. Our high-speed engines are perfectly suited to your varying needs in terms of power, acceleration, traction and manoeuvrability. Thanks to our low-consumption solutions with longer maintenance intervals, your tugs will be available more often, so that you can optimise your operations.
Government
Thanks to its long-term experience with shipyards, Eneria has been able to propose solutions that are well-suited to State-operated boats for many years (customs, military, coastguards). Eneria develops and supplies well adapted propulsion and onboard power supply solutions that meet the technical and regulatory demands of this market. Our offer ranges from 10 kW to 5,500 kW.
Pleasure boats
Eneria can offer support for the propulsion and power supply of your pleasure boat along the French coast and beyond. Whether you are sailing in the Mediterranean, the Atlantic or on the other side of the world, our teams are on hand to meet your needs to maintain your boat or replace the engine. You can really enjoy sailing, thanks to Eneria’s quality of service.
Inland waterways
For cruising or transporting goods on inland waterways, Eneria can offer a wide range of engines and services to maintain your Caterpillar engines. The Caterpillar engines meet your demands and the specific needs of your applications, both for engines and your onboard gensets.
Marine engines adapted to the marine standards and certifications
Eneria has also developed its own solutions to meet the new standards by obtaining the marine certifications (IMO, TIER) or by proposing hybrid propulsion.
Marine engines the world over are subject to numerous emissions standards. These emissions standards depend on the type of boat, the application and, most importantly, the location.
Emissions from marine engines are mainly regulated by the following standards:
- The IMO standards (International Maritime Organization), which govern emissions on an international scale and define the so-called specific ECAs (Emission Control Areas). This standard defines the IMO I, IMO II and IMO III emission levels.
- The EPA standards were drawn up by the United States and Canada to define the emissions levels for commercial and leisure applications. These emissions levels are called EPA Tier 2, EPA Tier 3 and EPA Tier 4.
- The EU standards are European standards that define the levels Stage I, Stage II, Stage III, Stage IV and Stage V.
The Caterpillar marine engines meet these international emissions standards and our teams can advise you according to your application and navigation activity.
The range of marine engines for commercial applications
Eneria supplies a broad range of Caterpillar engines to meet your propulsion needs for all types of commercial applications.
Thanks to its engineering and sales teams, Eneria can meet your needs, from 250 kW to 5,500 kW, from the design phase with the architects and shipyards, to the commissioning of the boat and the Caterpillar marine engines.
Thanks to the combination of the Caterpillar marine engines and the Transfluid parallel hybrid systems, you can reduce the emissions and the consumption of your vessel.
This hybrid solution is well adapted to many marine engines and supplies 8 kW to 300 kW of additional electric power. You can switch between the different navigation modes: all-electric, diesel and the booster mode for additional power.
Marine engines from 280 bKW to 820 bKW
C9.3 ACERT / 280 – 355 bKW
- Power Range : 280 – 355 bKW (375 – 476 bHP)
- Speed Range : 1800 Ã 2300 tr/min
- Emissions : EPA Tier 3 Commercial, IMO II, UE IW
C12 / 254 – 366 bkW
- Power Range : 254 – 366 bkW (340 – 490 bHP)
- Speed Range : 1800 Ã 2300 tr/min
- Emissions : IMO I, IMO II
3406C / 272 – 298 bkW
- Power Range : 272 – 298 bkW (365 – 460 bHP)
- Speed Range : 1800 tr/min
C18 / 339 – 747 bkW
- Power Range : 339 – 747 bkW (454 – 1001 bHP)
- Speed Range : 1800 Ã 2300 tr/min
- Emissions : IMO II, EU IIIA, EPA Tier 3 Commercial
C18 IMO III/ 301 – 847 bkW
- Power Range : 301 – 847 bkW (403-1135 bHP)
- Speed Range : 1500 Ã 2300 tr/min
- Emissions : IMO III
C32 ACERT / 492 – 1081 bkW
- Power Range : 492 – 1081 bkW (660 – 1450 bHP)
- Speed Range : 1600 Ã 2300 tr/min
- Emissions : IMO II, EU IW
C32 ACERT / 559 – 1342 bkW
- Power Range : 559 – 1342 bkW (750 – 1800 bHP)
- Speed Range : 1600 Ã 2300 tr/min
- Emissions : EPA Tier 3, IMO II, EU IW
3508C / 578 – 820 bkW
- Power Range : 578 – 820 bkW (775 – 1100 bHP)
- Speed Range : 1200 Ã 1600 tr/min
- Emissions : IMO II, EU IW
Marine engines from 955 bKW to 3,800 bKW
3512C / 955 – 1902 bkW
- Power Range : 955 – 1902 bkW (1280 – 2551 bHP)
- Speed Range : 1200 Ã 1800 tr/min
- Emissions : IMO II, EU IW
3512C / 1000 – 1765 bkW
- Power Range : 1000 – 1765 bkW (1340 – 2366 bHP)
- Speed Range : 1200 Ã 1800 tr/min
- Emissions : EPA Tier 3, IMO II
3516C / 1230 – 2525 bkW
- Power Range : 1230 – 2525 bkW (1650 – 3386 bHP)
- Speed Range : 1200 Ã 1800 tr/min
- Emissions : IMO II
3516C / 1590 – 1995 bkW
- Power Range : 1590 – 1995 bkW (2131 – 2675 bHP)
- Speed Range : 1600 tr/min
- Emissions : EPA Tier 3, IMO II
C280-6 / 1730 – 2030 bkW
- Power Range : 1730 – 2030 bkW (2320 – 2722 bHP)
- Speed Range : 900 Ã 1000 tr/min
- Emissions : IMO II
C175-16 / 2001 – 2550 bkW
- Power Range : 2001 – 2550 bkW (2683 – 3420 bHP)
- Speed Range : 1600 Ã 1800 tr/min
- Emissions : IMO II
C280-8 / 2300 – 2530 bkW
- Power Range : 2300 – 2530 bkW (3084 – 3393 bHP)
- Speed Range : 900 tr/min
- Emissions : IMO II
C280-12 / 3460 – 3800 bkW
- Power Range : 3460 – 3800 bkW (4640 – 5096 bHP)
- Speed Range : 900 tr/min
- Emissions : IMO II
The range of marine engines for pleasure boats
In the world of pleasure boating, we offer a range of high-performance Caterpillar engines for your yacht or mega-yacht. We offer a wide range, from 400 mHP to 2,400 mHP, that is ideally suited to both pleasure boats and mega-yachts.
The high-performance Caterpillar engines feature technological innovations, such as the ACERT technology. These engines meet the latest environmental standards and offer a pleasurable sailing experience.
You can now use the Caterpillar control systems for improved control of your boat and for easier manoeuvrability, when used together with bow thrusters.
Our Caterpillar marine engines for pleasure boating can be integrated perfectly into your boat, both in new projects and engine replacements.
Marine engines from 400 mHP to 2,366 mHP
C7.1 / 400 – 500 mHP
- Power Range : 400 – 500 mHP (298 – 373bkW)
- Speed Range : 2900 tr/min
- Emissions : IMO II, EPA Tier 3, EU Stage IIIA

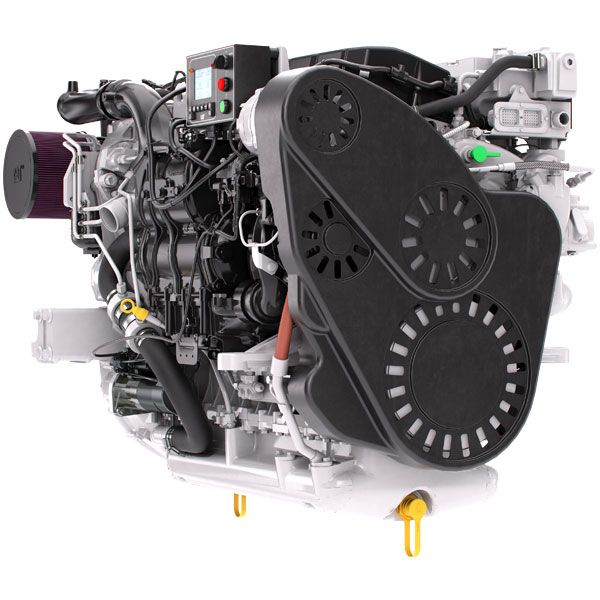

C8.7 / 650 mHP
- Power Range : 650 mHP (478 bkW)
- Speed Range : 2300 tr/min
- Emissions : IMO II, EPA Tier 3
C12 / 669 – 715 mHP
- Power Range : 669 – 715 mHP (492 – 526 bkW)
- Speed Range : 2300 tr/min
- Emissions : IMO II
C12.9 / 850 – 1000 mHP
- Power Range : 850 – 1000 mHP (625 – 735 bkW)
- Speed Range : 2300 tr/min
- Emissions : IMO II, EPA Tier 3, EU Stage IIIA
C18 / 1015 – 1150 mHP
- Power Range : 1015 – 1150 mHP (747 – 847 bkW)
- Speed Range : 2300 tr/min
- Emissions : IMO II, EPA Tier 3, UE IW
3512C HD / 1340 – 2366 mHP
- Power Range : 1340 – 2366 mHP (1000 – 1765 bkW)
- Speed Range : 1600 Ã 1800 tr/min
- Emissions : IMO II, EPA Tier 3
C32 / 1825 – 1925 mHP
- Power Range : 1825 – 1925 mHP (1342 – 1417 bkW)
- Speed Range : 2300 tr/min
- Emissions : IMO II, EPA Tier 3, UE IW
